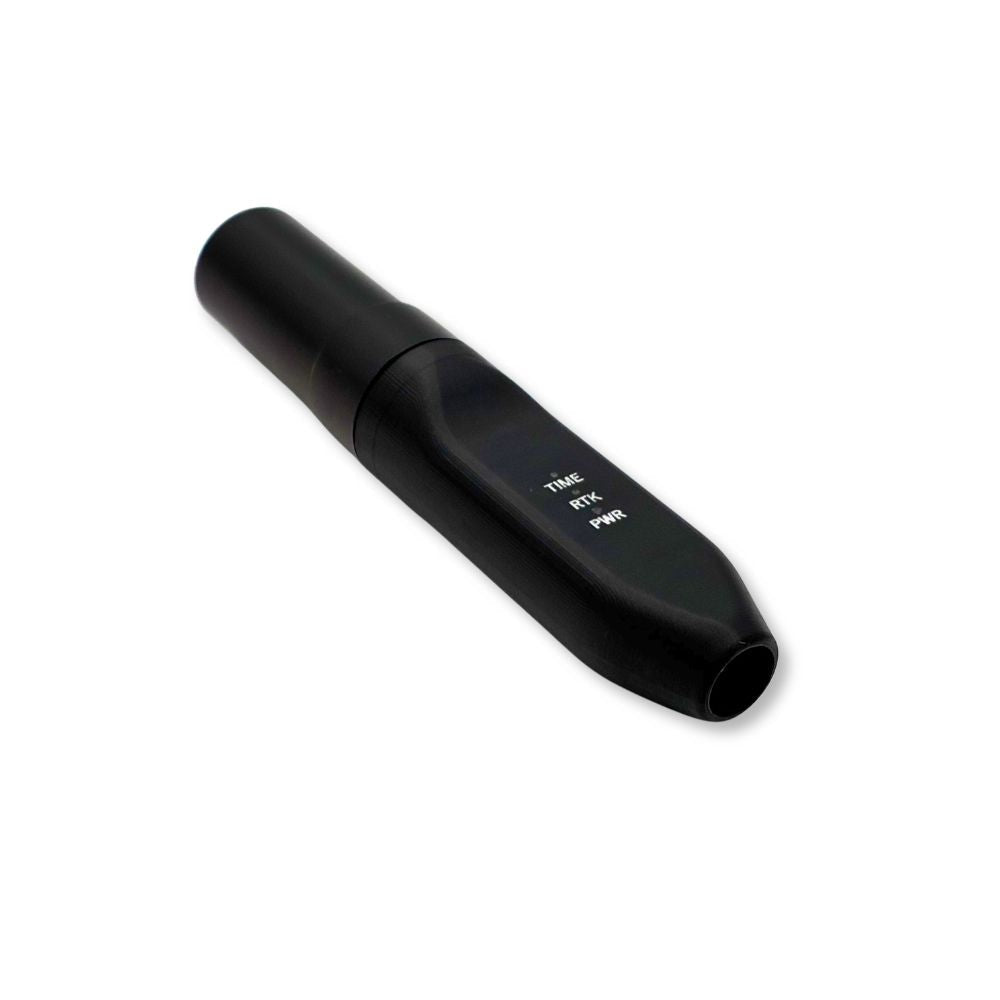

Name: ZED-X20P RTK InCase PIN GNSS receiver board with USB C and SMA
Brand: Antenas/Routers
SKU: ELT0461
Price: 313.99 USD
Availability: InStock

ZED-X20P RTK InCase PIN GNSS receiver board with USB C and SMA

$313.99

Key Features

High-precision ZED-X20P GNSS module
Compact, lightweight design
External antenna connector
Concurrent reception
Centimeter-level RTK accuracy
Energy-efficient and robust
Compatible with PX4 and ArduPilot

The ZED-X20P ultraLight is a compact, high-performance all-band RTK receiver based on the ZED-X20P GNSS module. Designed for UAVs, robotics, surveying instruments, and autonomous platforms, it delivers fast RTK convergence and centimeter-level positioning accuracy in a lightweight and power-efficient form factor.

Optimized for professional applications, the ZED-X20P ultraLight combines robust design with reliable performance, ensuring precise positioning even in challenging or obstructed environments.

General Specifications:

USB C connector
SMA antenna connector for GNSS antenna attachment
Power supply: 5 VDC
Power LED: violet; RTK LED: orange; Time pulse LED: green
Compact, durable enclosure with mounting base - purpose-built for UAVs and robotics
u-center2 ublox Evaluation Software
Extensive visualization and evaluation features
Fully assembled and ready to use

Physical Characteristics:

Dimensions:
- Device: 89 × Ø27.5 mm
- Device with antenna: 148.7 × Ø27.5 mm

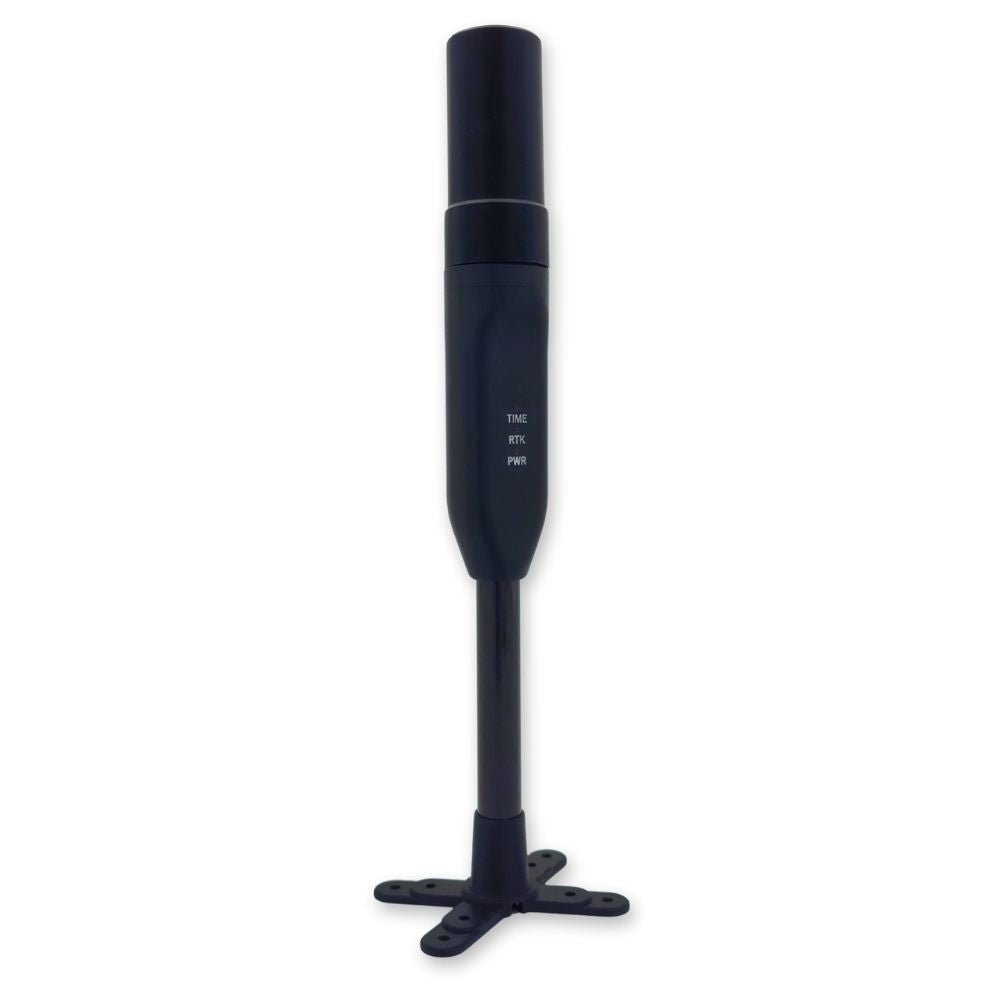

- Device on mounting base, with antenna: 235 × Ø27.5 mm
Weight:
- Device: 24.5 g
- Device with antenna: 41 g
- Device on mounting base, with antenna: 48.5 g
Water and Dust Resistance: IP55
Operating Temperature: -10 °C ~ +60 °C
Connector type: JST GH 6 pin, USB type C, SMA
Mounting Options: Screw mount
RoHS & Reach Compliant
Fully assembled, tested, and ready for use
